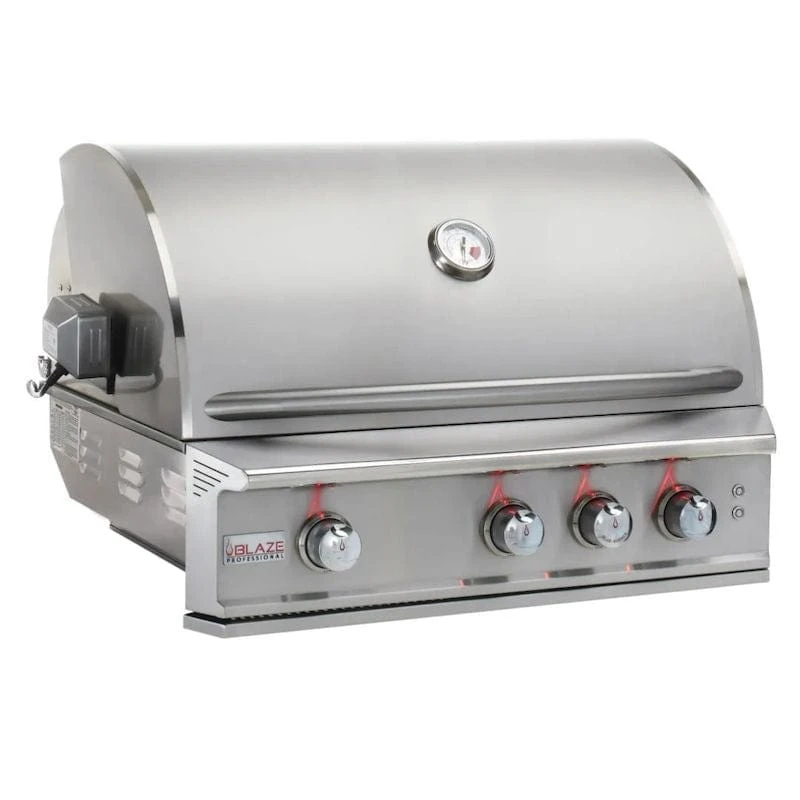

Blaze 34-Inch Professional LUX 3 Burner Built-In Gas Grill With Rear Infrared Burner And Cart

Blaze 34-Inch Professional LUX 3 Burner Built-In Gas Grill With Rear Infrared Burner and Cart

Blaze presents the Blaze Professional Grill as a leader in the industry regarding the thickness of its components resulting in irrefutable durability while providing an effective cooking system.

By the precision mixing of fuel and oxygen, Blaze Professional achieves extraordinary searing temperatures while maintaining low gas consumption per burner when compared to the top-performing grill brands. The Professional’s Illumination system compliments its unmistakable style giving an appearance to catch every admiring eye!

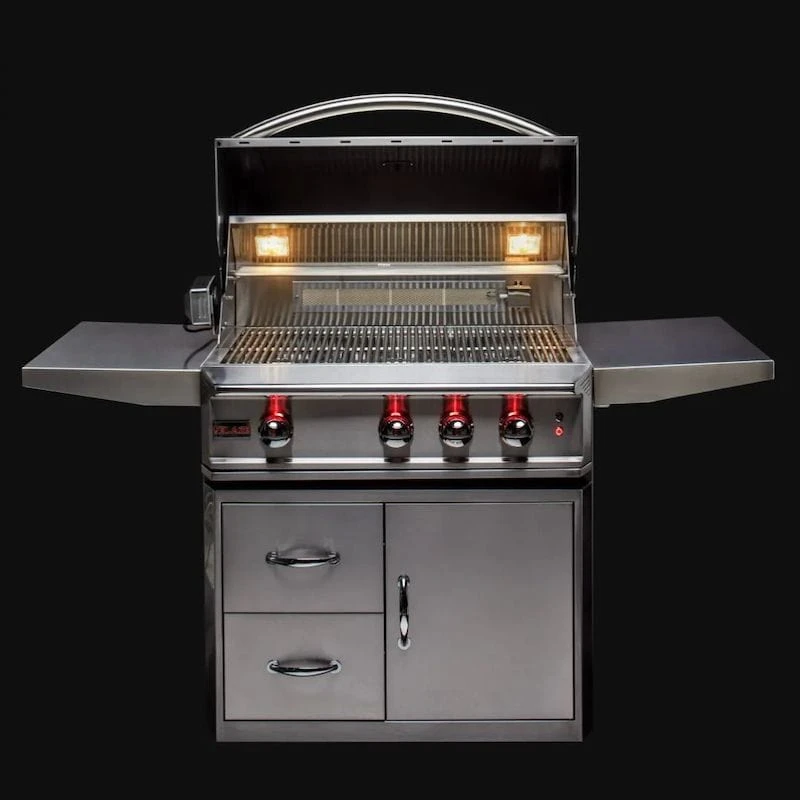

This Blaze stainless steel grill cart is specifically designed to house the Blaze Professional 3 burner gas grill. The two stainless steel side shelves keep your BBQ tools at hand and provide a convenient work area while you cook.

3-Burner Professional LUX Gas Grill Dimensions

‣ Overall Dimensions: 24 1/4″ H x 34″ W x 28 3/8″ D

‣ Cut Out Dimensions: 10 1/2″ H x 32 1/4″ W x 23 5/8″ D

• These dimensions create the required air gap underneath this appliance. This air gap serves multiple purposes, such as preventing a build-up of heat in the island cavity and helping provide proper airflow for combustion and/or cabinetry.

If you wish to get just the grill without the cart, check out the Blaze Professional LUX 34-Inch 3 Burner Built-In Gas Grill With Rear Infrared Burner.

GRILL OVERVIEW

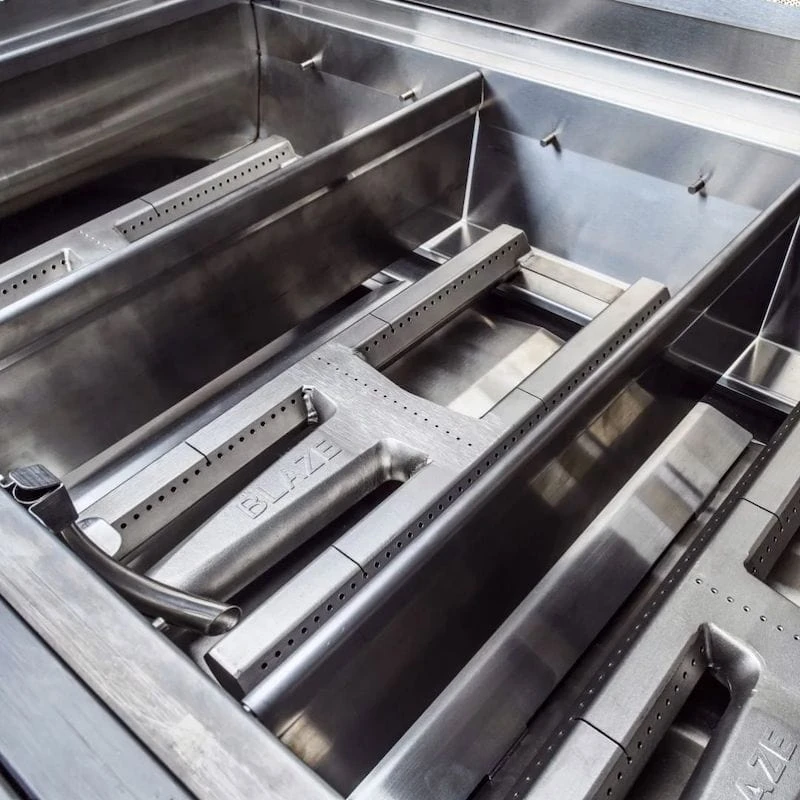

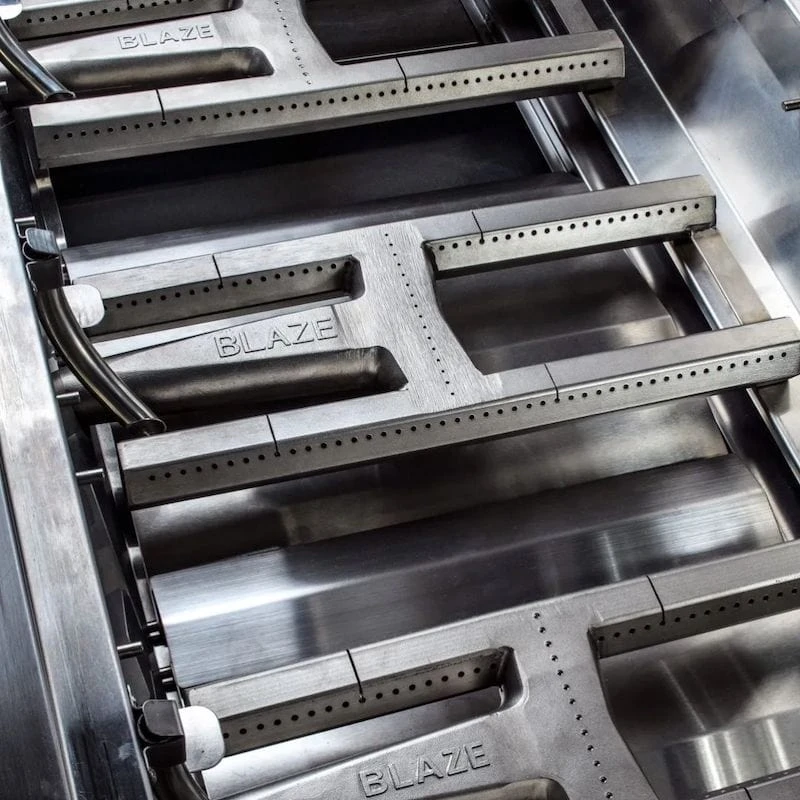

• 3 commercial quality 304 cast stainless steel H burners
• 18,000 BTUs of cooking power per burner, for a total of 54,000 BTUs

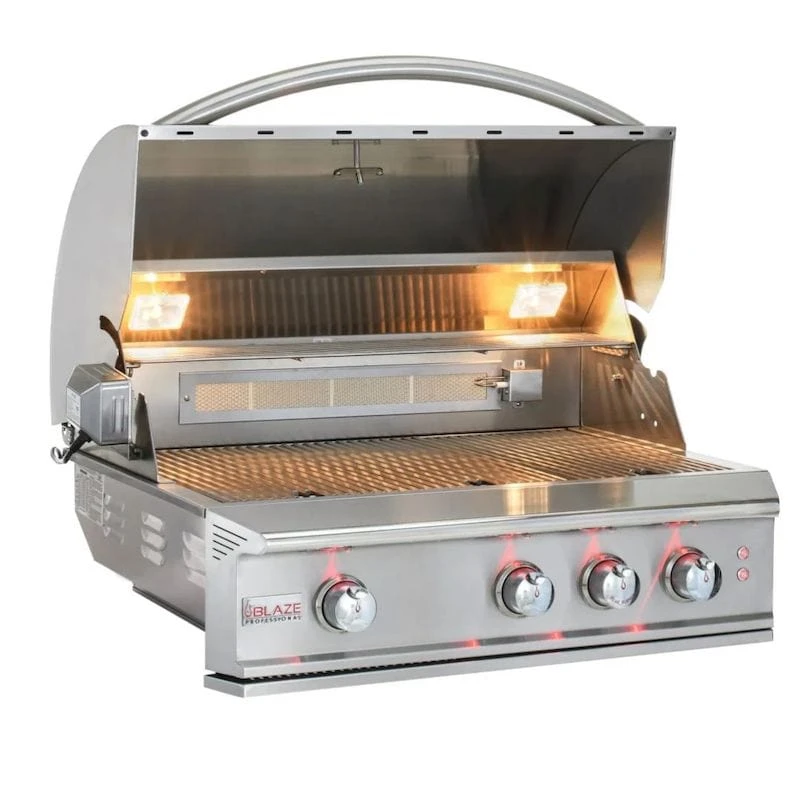

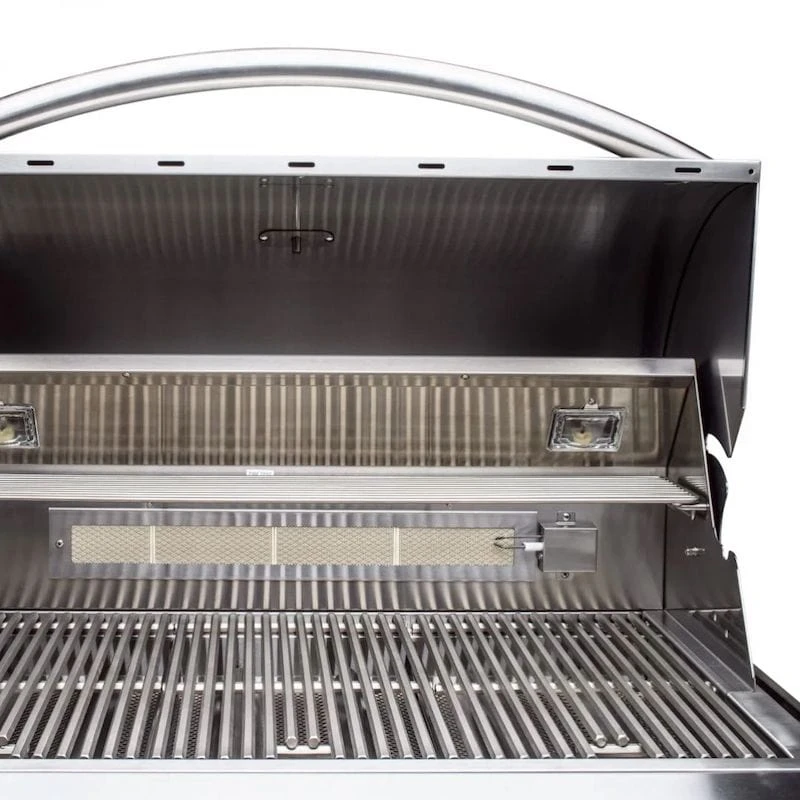

• 10,000 BTU infrared rear rotisserie burner with included rotisserie kit

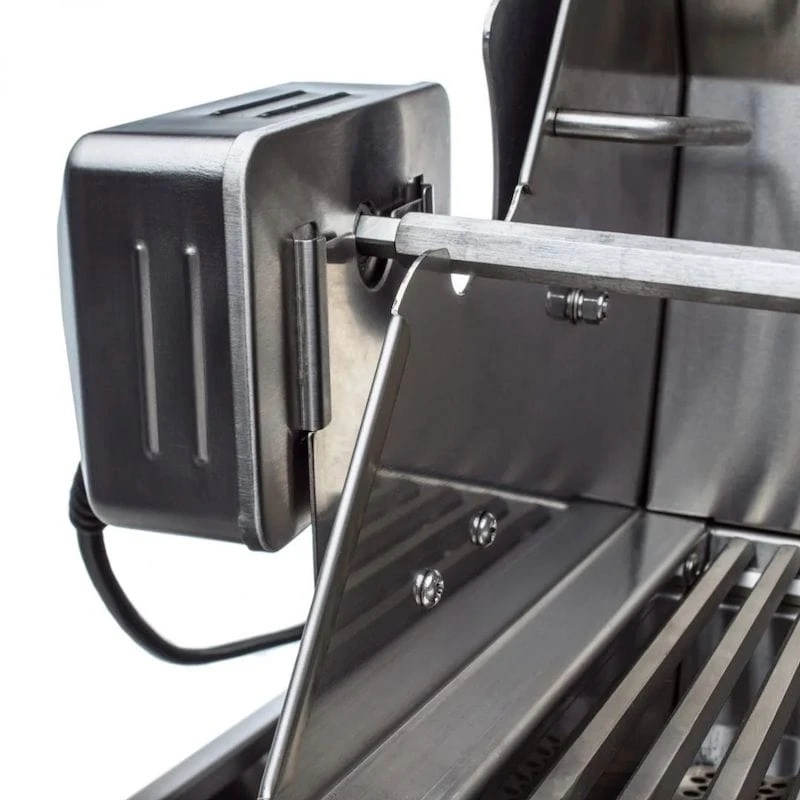

• Rotisserie kit includes a waterproof motor

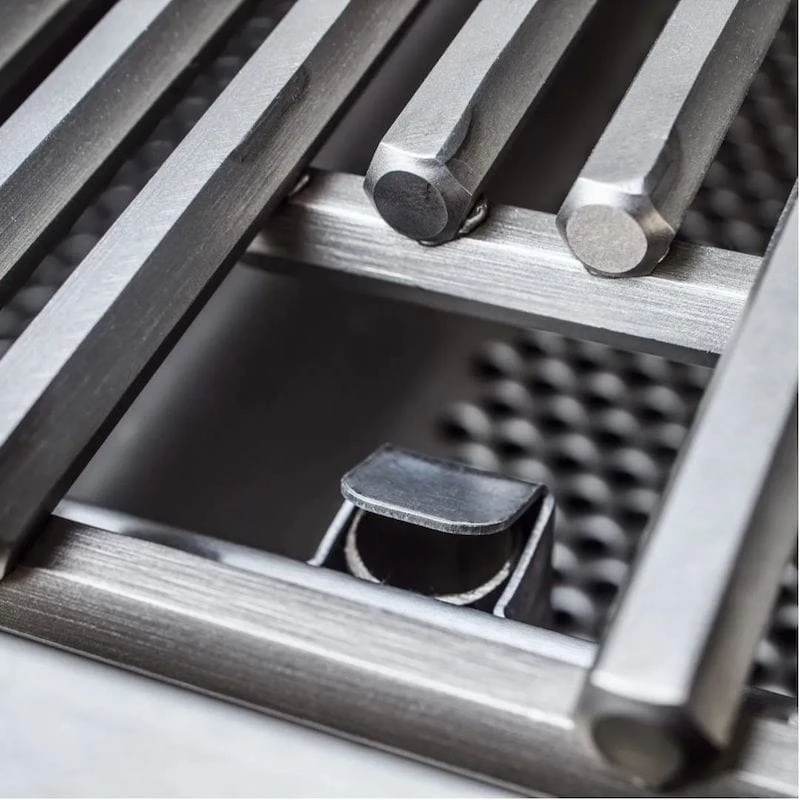

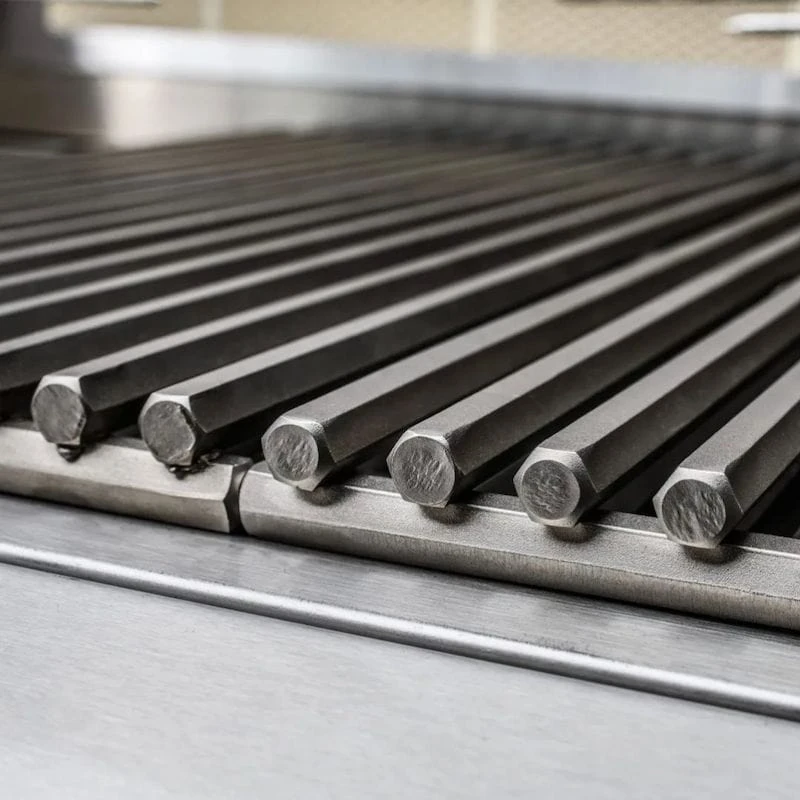

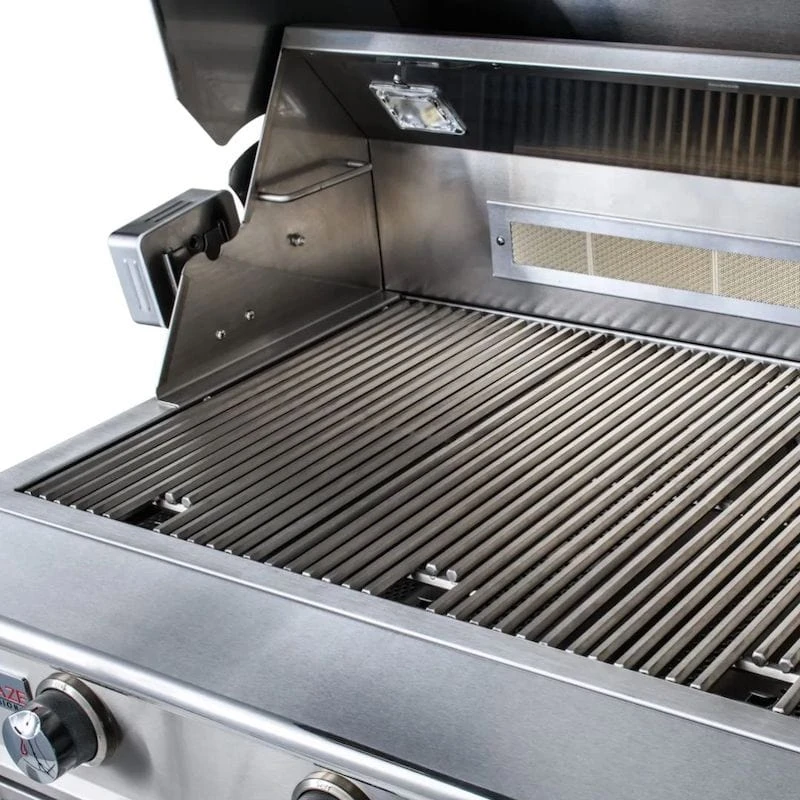

• Heavy 12mm stainless steel hexagon cooking rods maximize durability
• 816 square inches of total cooking space
• Push and turn flame-thrower primary ignition system delivers a fast start every time
• Individual flash tube secondary ignition
• Removable warming rack
• Heat zone separators divide the cooking surface into individual temperature zones

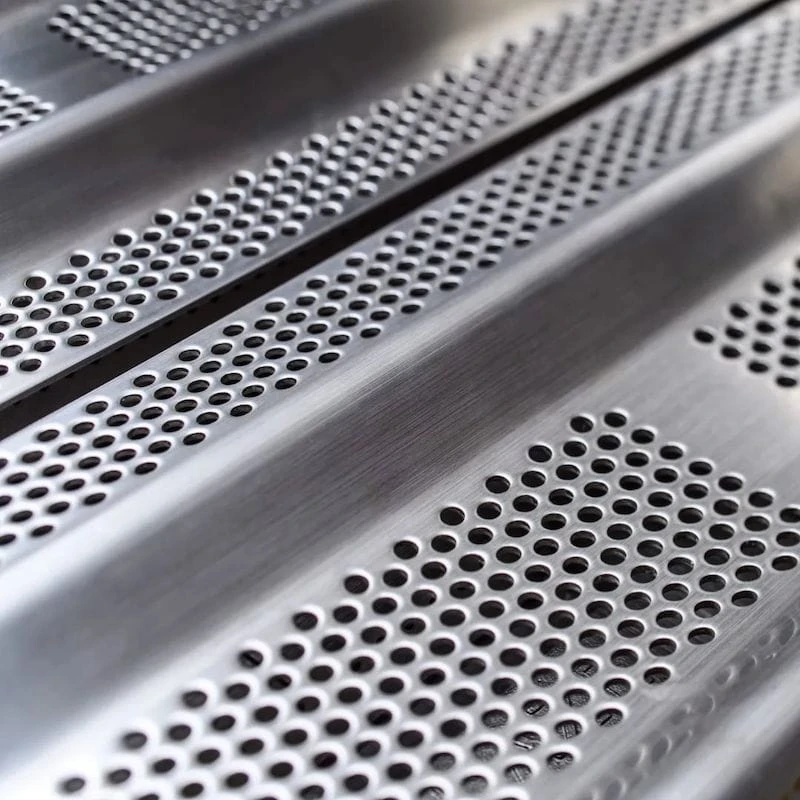

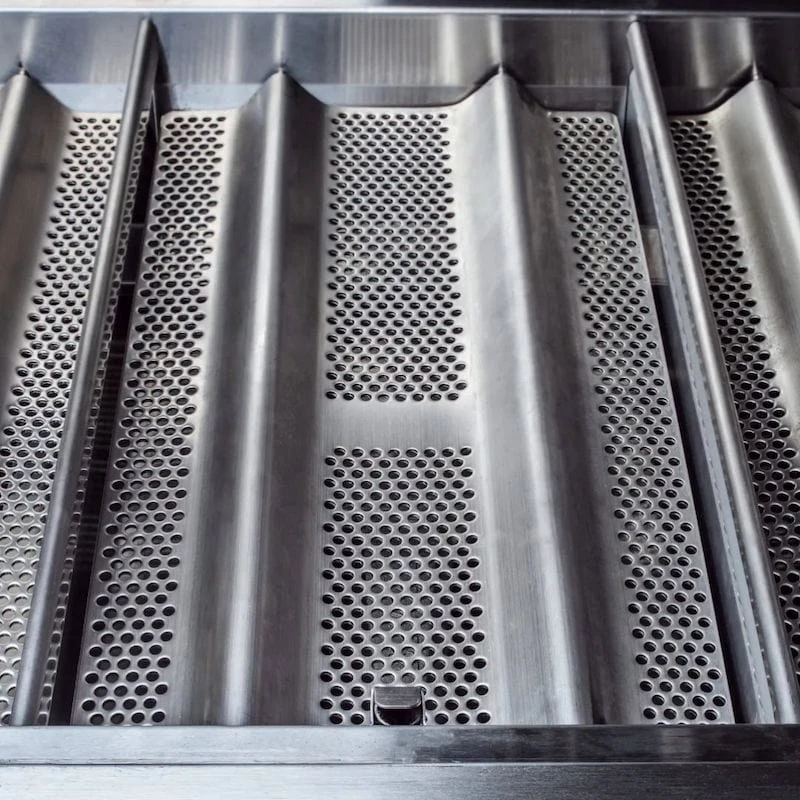

• Flame stabilizing grids minimize flare-ups while adding a grilled flavor
• Full-width drip tray for a quick clean up

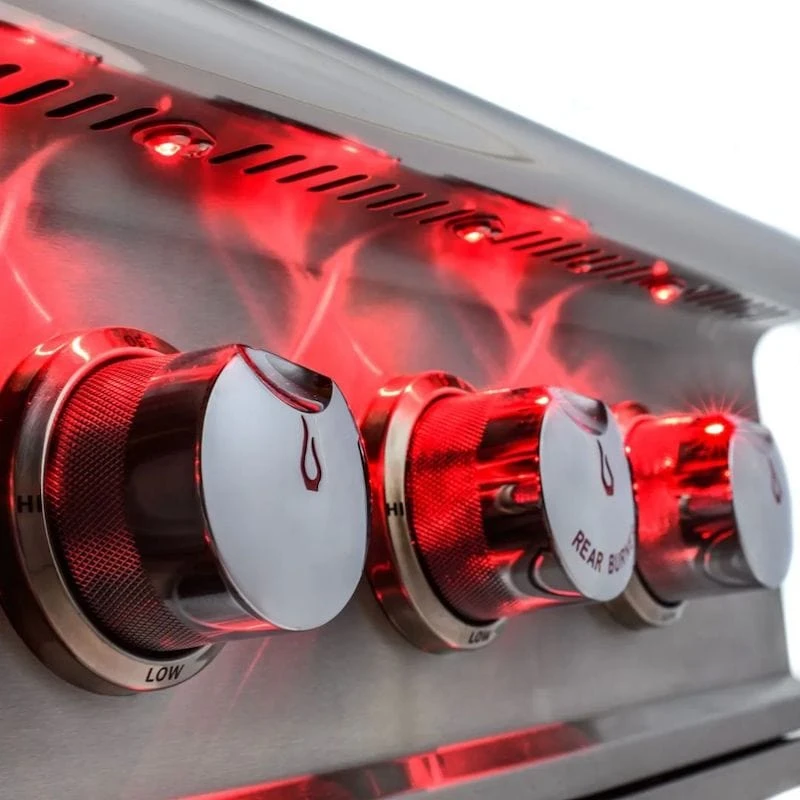

• Illuminated control knobs for evening gatherings creates a sophisticated appearance
• Interior lights help navigate the grilling surface at night
• Double-lined grill hood protects the outer layer from heat discoloration and maintains more heat
• Blaze Grills offers an impressive Lifetime Warranty

Standard LUX Features

Grill Specifications

BTU Output	18,000 BTU per Burner x3
Infrared Back Burner	10,000 BTU
Total BTU	64,000 BTU
Primary Ignition	Push N’ Turn Flame Thrower
Secondary Ignition	Flash Tube
Cooking Grid Dimensions	30 13/16 x 19 15/16
Total Cooking Area	816 sq. in. (includes warming rack)
Flame Tamer	Flame Stabilizer Grid
Zone Cooking	Removable Heat Zone Separators
Rotisserie Kit (Motor & Forks)	Included
Burner	Commercial Quality Cast Stainless Steel
Gas Type	Each grill contains an NG/LP Orifice Kit

Optional Accessories

• Blaze LED Light Kit
  (SKU:BLZ-3PROLED-(AMBER/BLUE/WHITE))
  • Customize your Blaze Professional and LTE Products with new LED Light Colors Available in Blue, White, and Amber
  • These light kits can change the colors of existing lights on the LTE and Professional products only.



---



• Blaze Insulated Jackets for Gas Grills
  (SKU: BLZ-3PRO-IJ)
  • Blaze insulated jackets are essential when installing Blaze gas grills into a combustible enclosure such as an outdoor kitchen or BBQ island. This insulated jacket is constructed of stainless steel with a self-supporting ledge around the sides and back that adds one more layer of quality to your outdoor kitchen.
  • Overall Dimensions: 11 1/4″ H x 36 3/4″ W x 25 7/8″ D
  • Cut Out Dimensions: 11″ H x 34 7/8″ W x 24 1/2″ D
  • Insulated Jacket Installation

---

• Blaze Drip Tray Flame Guard
  (SKU: BLZ-3PRO-DPFG)
  • The Blaze Drip Tray Flame Guard is the perfect upgrade to your Blaze Grill
  • This perforated piece sits inside the drip tray to help reduce the chance of a grease fire in the pan.
  • Extra safety feature
  • Helps to reduce the chance of grease fire in the drip tray



---

• Blaze Professional Smoker Box
  (SKU: BLZ-PRO-SMBX)
  • Made to last with 304 Stainless Steel construction
  • Adds outstanding smoky flavor to grilled foods, with no charcoal mess
  • Allows flavor-enhancing wood chips to smolder, not flame
  • Design allows you to easily add wood chips to your cook out
  • Welded seams allow the use of liquids for steaming



---

• Blaze Wind Guards
  (SKU: BLZ-PROWG-34)
  • This heavy duty 304 stainless steel wind guard easily integrates into outdoor areas by conveniently mounting into your existing cutout or insulated jacket.
  • Wind guards shield the grill from winds of up to 25 MPH, and are backed by a Lifetime warranty.
  • The Blaze wind guard is custom designed for high wind situations, such as coastal areas or balconies.
  • The Blaze Wind Guard allows you to cook on lower settings, keeps the burners lit, and prevents the fire from going out, even in strong winds.
  • Designed to mount within the existing grill cutout or inside the insulated jacket for easy installation.



Blaze Professional LUX 34-Inch 3 Burner Built-In Gas Grill
Installation Manual

Take a closer look at this Grill

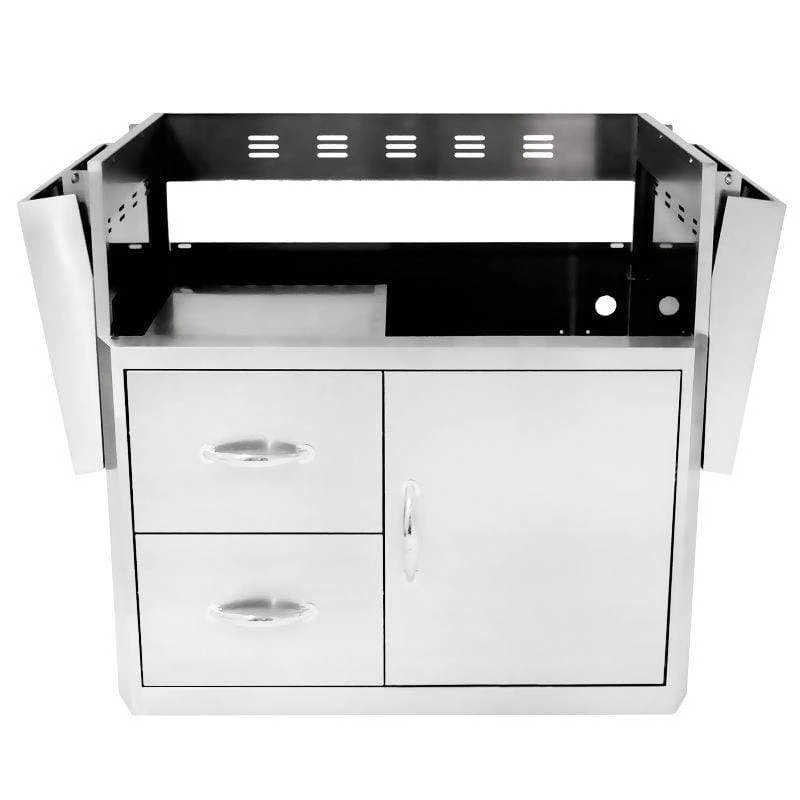

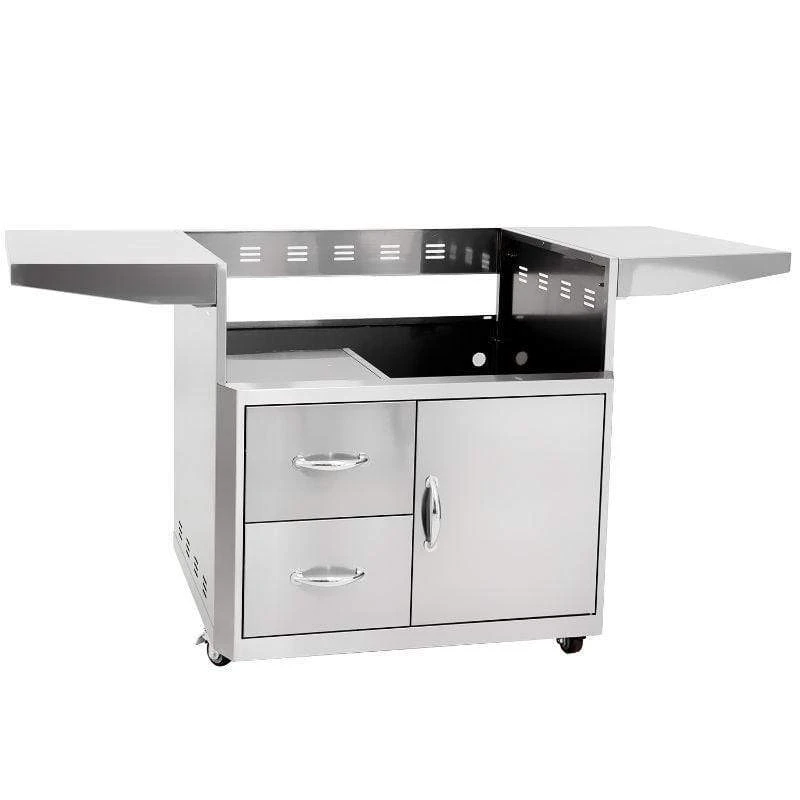

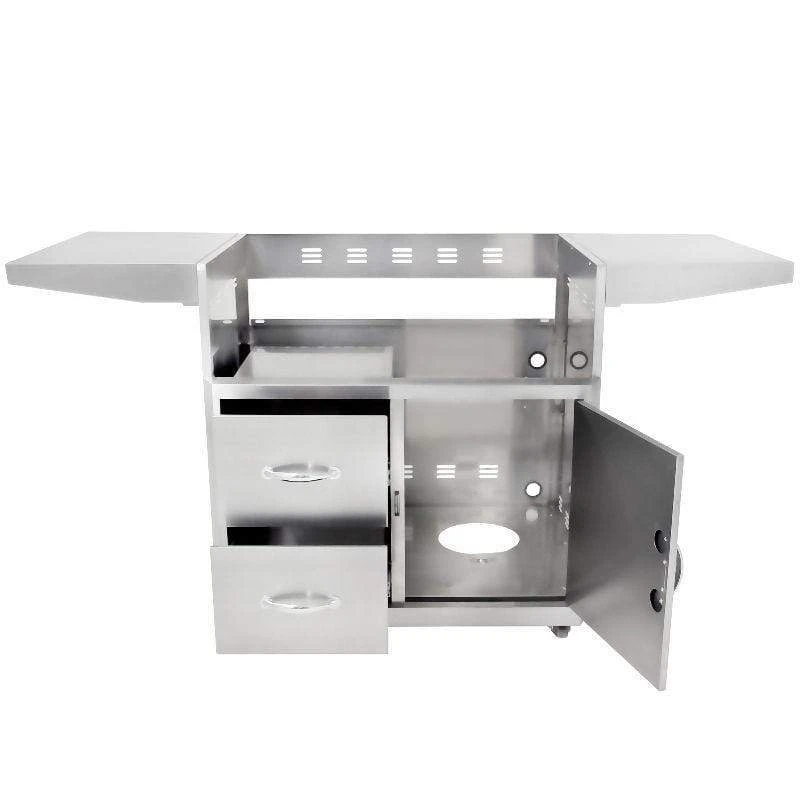

Blaze 3PRO Cart Dimensions and Specs

• Weight: 119 lbs
• Dimensions:

Overall Cart Dimensions Height: 35 1/4″ Width: 65 1/2″ Depth: 26 3/4″

Cart without Shelves Height: 34 1/4″ Width: 33 3/4″ Depth: 23 7/8″

Single Shelf Dimensions Width: 15 3/4″ Depth: 23 7/8″

Drawer Internal Dimensions Height: 5 7/8″ Width: 12 7/8″ Depth: 19″

Physical Door Opening Height: 19″ Width: 14 1/8″

• Stainless steel construction is durable in outdoor conditions
• Two drawers add practical storage for your BBQ accessories
• 2 folding side shelves provide a convenient work area while grilling
• 4 heavy duty casters allow you to reposition the grill as needed

Blaze 3PRO Cart Installation Manual
