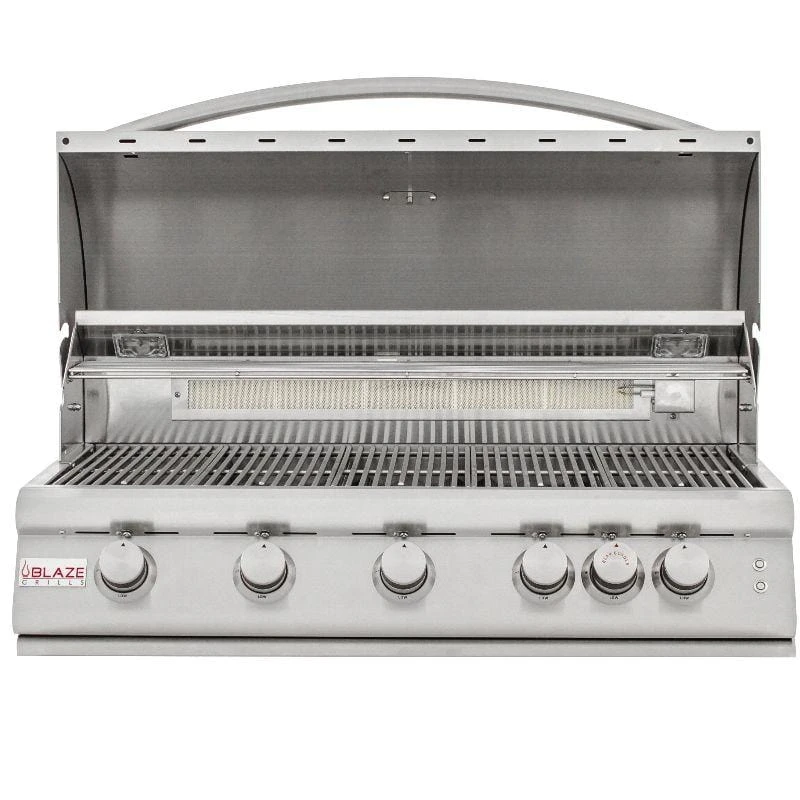

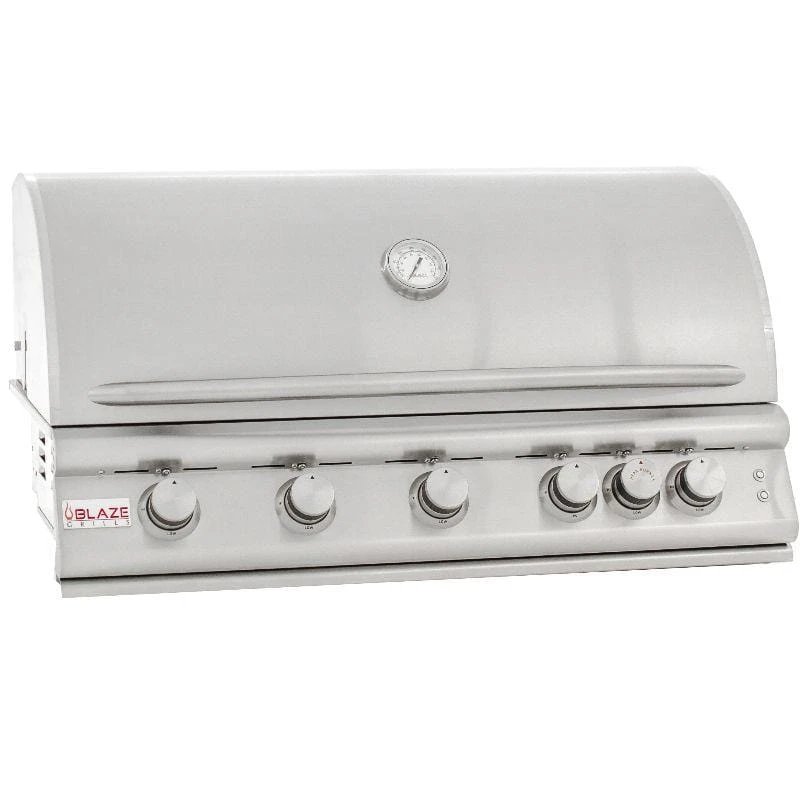

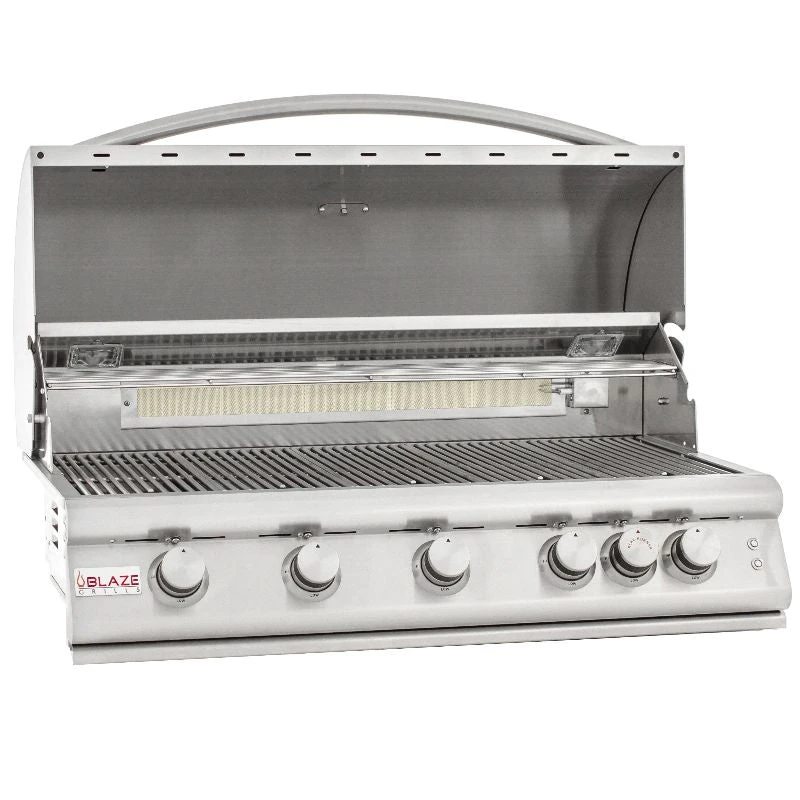

Blaze 40-inch 5-Burner LTE Gas Grill With Rear Burner And Built-in Lighting System

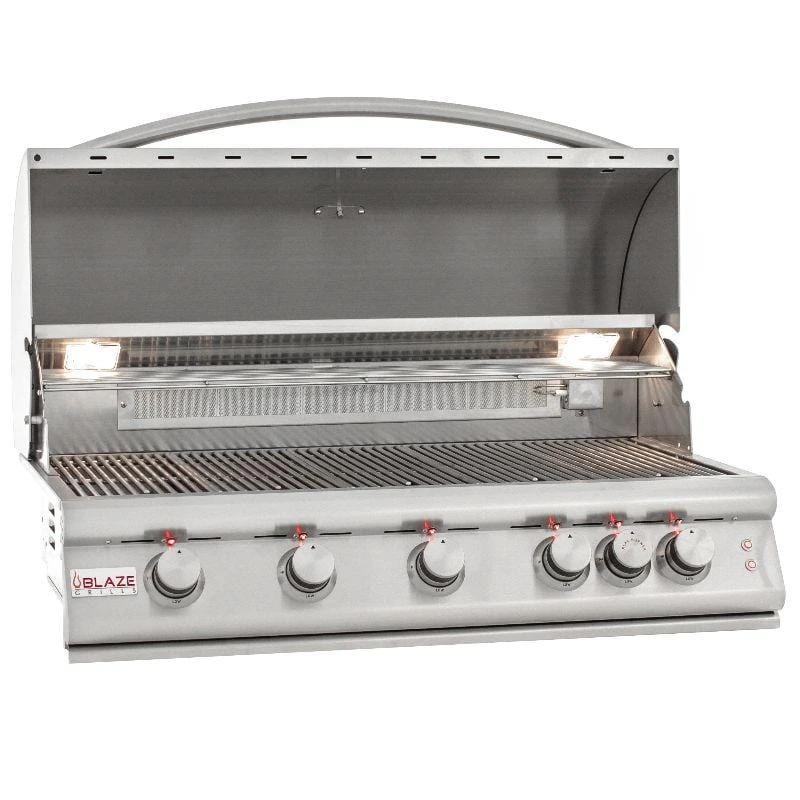

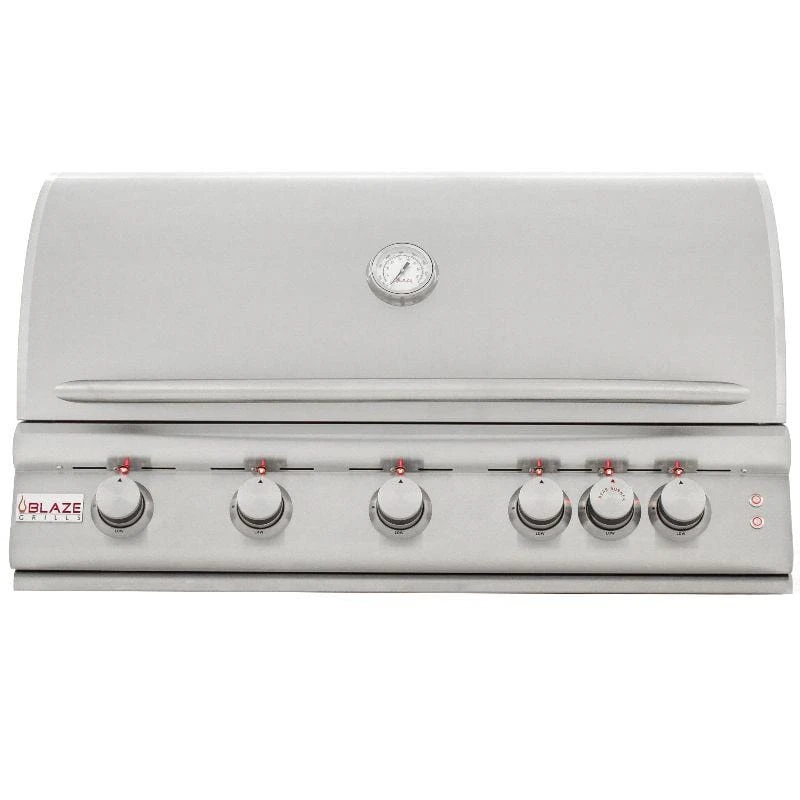

Blaze 40-Inch 5-Burner LTE Gas Grill

Blaze introduces an affordable commercial style grill that was designed with your outdoor BBQ desires in mind. Blaze gas grills feature precision cut, 304 stainless steel components that bring the promise of lasting durability to your outdoor BBQ!

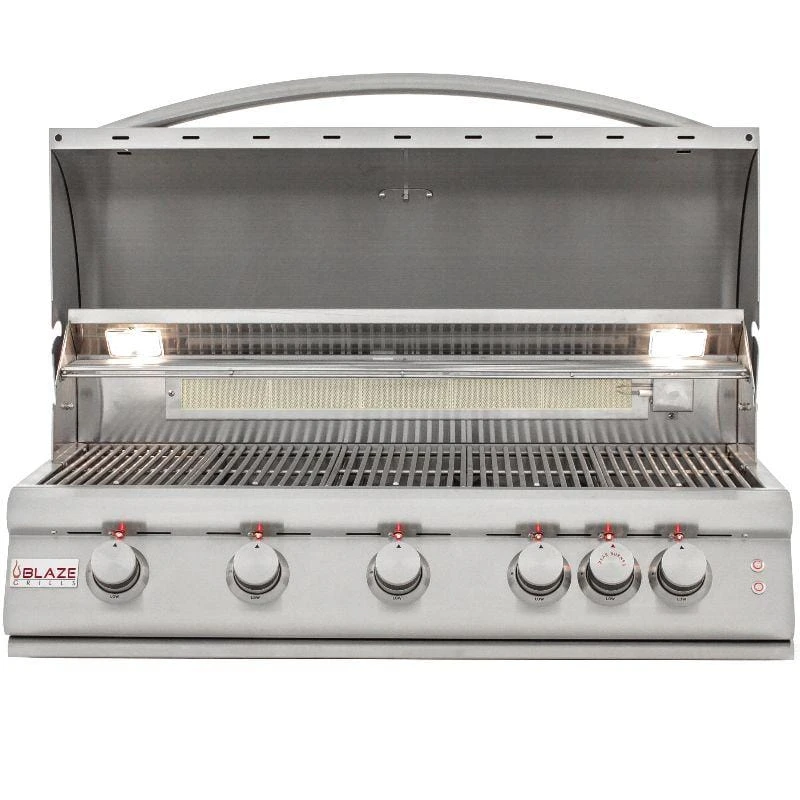

This model takes things to the next level with our signature SRL led accent lights and integrated halogen hood lighting.

A cart is available for this grill. Check out the Blaze 40-inch 5-Burner LTE Gas Grill With Rear Burner and Built-in Lighting System and Cart.

BLAZE 5-BURNER GRILL Dimensions

‣ Overall Dimensions: 21 1/4″ H x 39 1/2″ W x 25 3/4″ D
‣ Cut Out Dimensions: 8 1/2″ H X 38 3/8″ W X 21 1/4″ D

• These dimensions create the required air gap underneath this appliance. This air gap serves multiple purposes, such as preventing a build-up of heat in the island cavity and helping provide proper airflow for combustion and/or cabinetry.

GRILL OVERVIEW

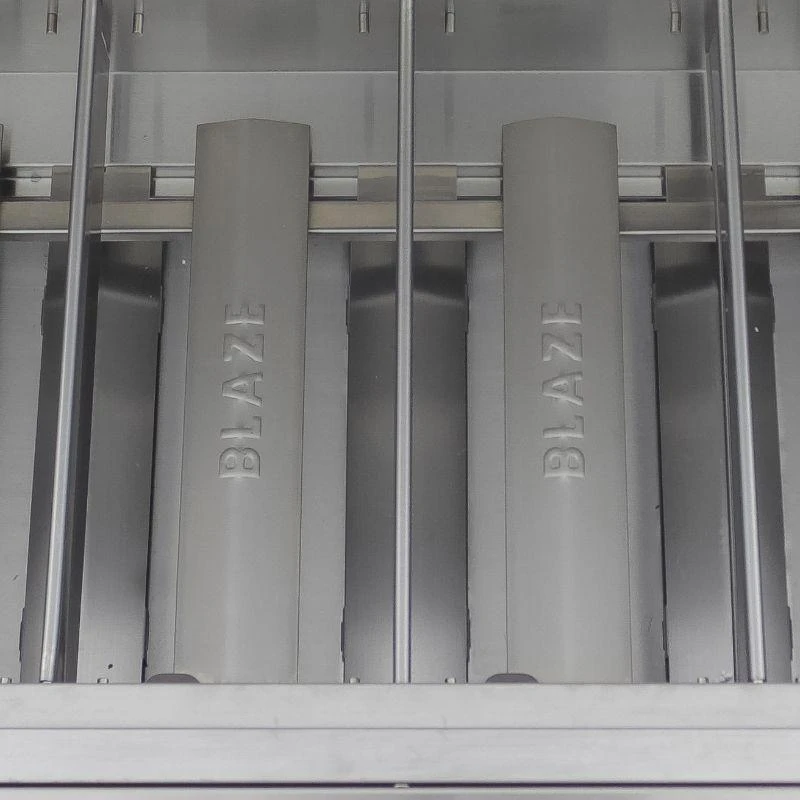

• 5 commercial quality 304 cast stainless steel burners
• 14,000 BTUs of cooking power per burner, for a total cooking surface of 70,000 BTUs
• 10,000 BTU infrared rear rotisserie burner
• Total grill BTUs equal 80,000

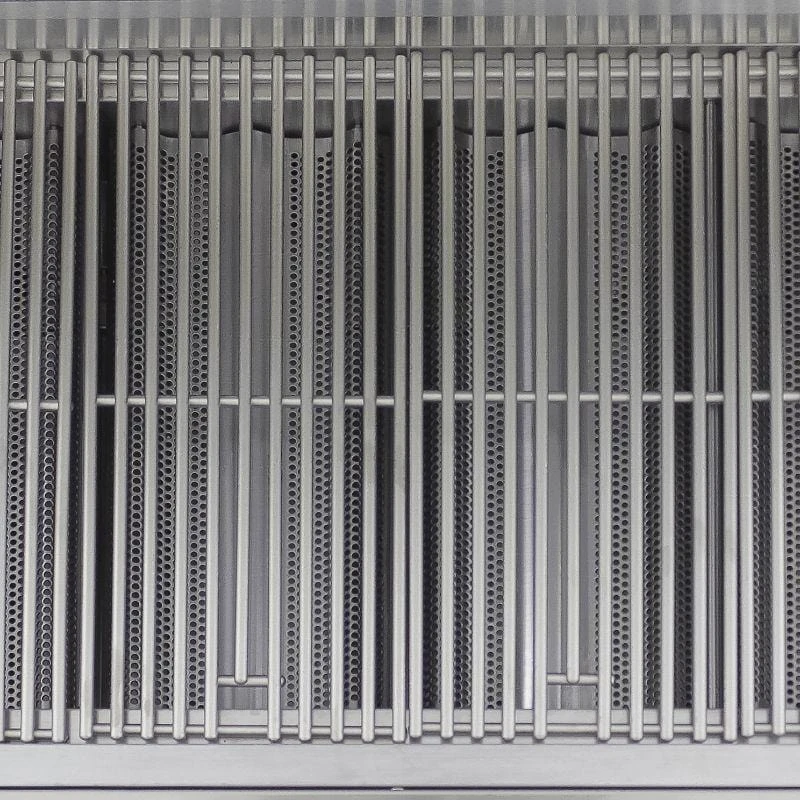

• Heavy 9mm triangular stainless steel cooking rods maximize durability and produce distinguished sear marks
• 915 square inches of total cooking space
• Push and turn flame-thrower primary ignition system delivers a fast start every time
• Flash tube ignition and crossovers provide an alternate ignition option
• Removable warming rack

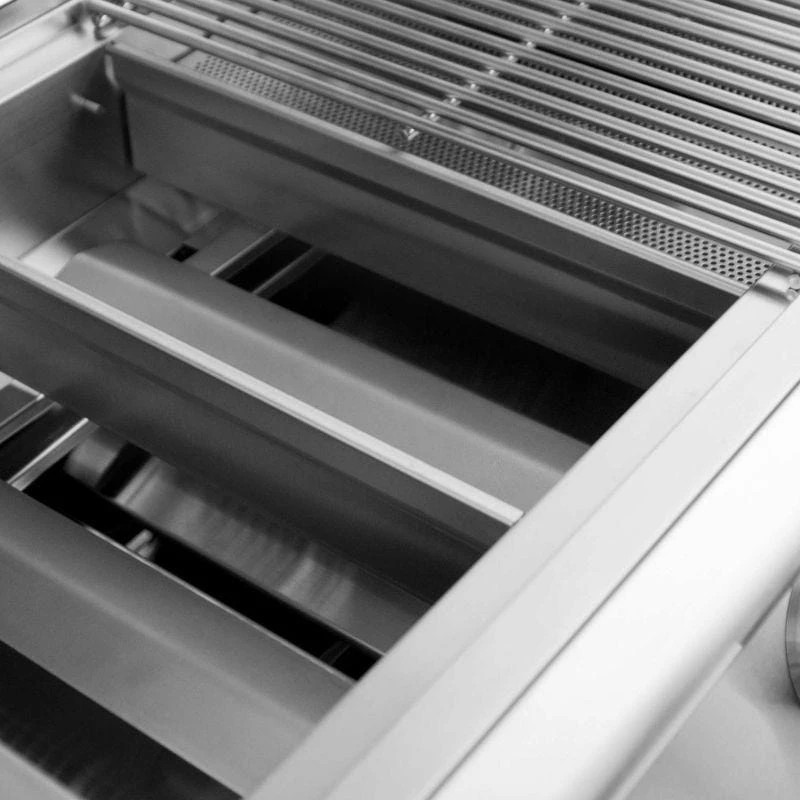

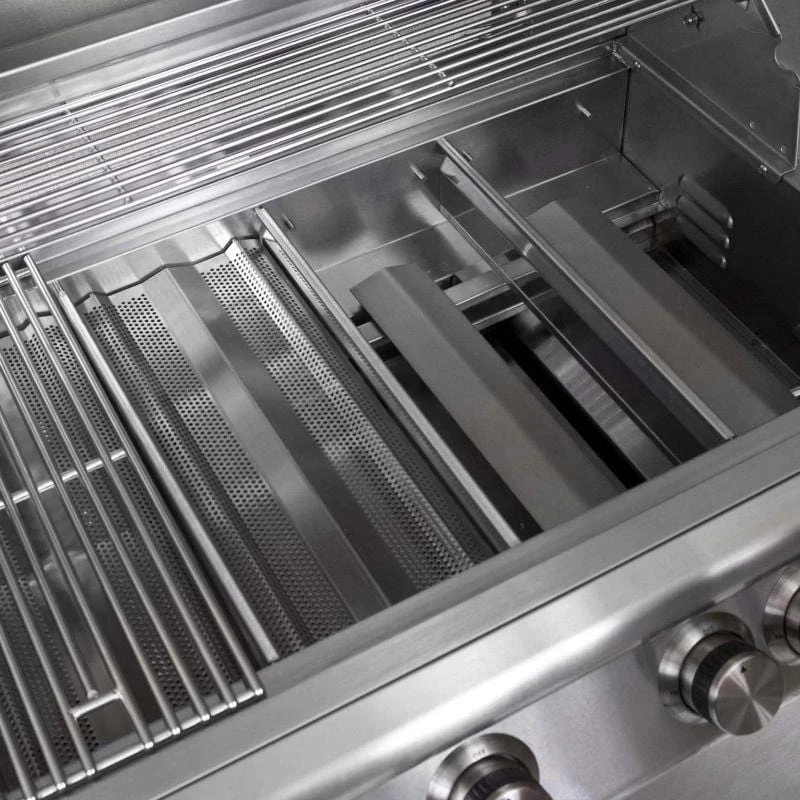

• Heat zone separators divide the cooking surface into individual temperature zones

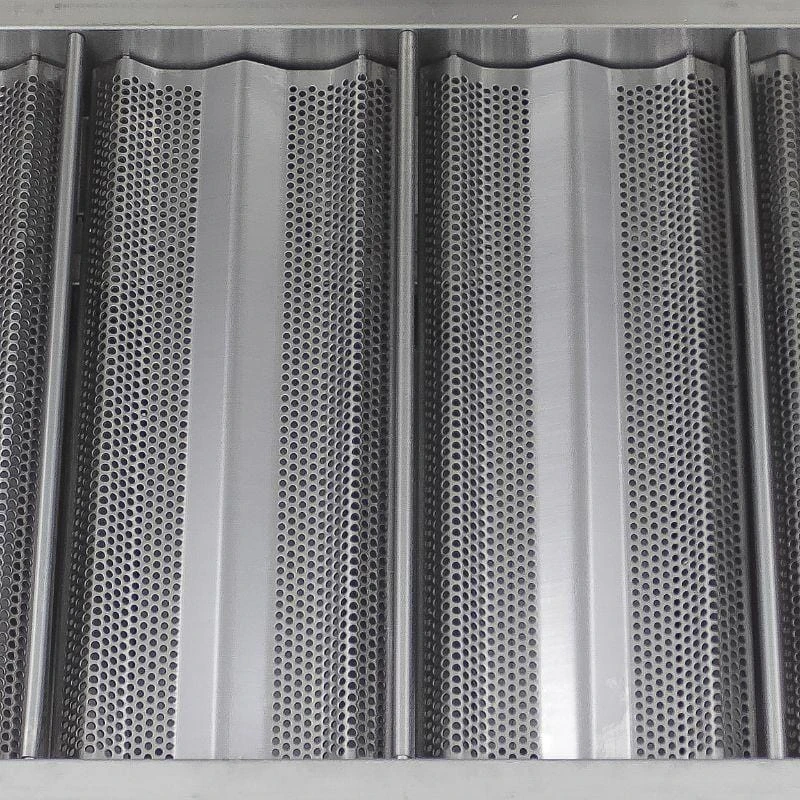

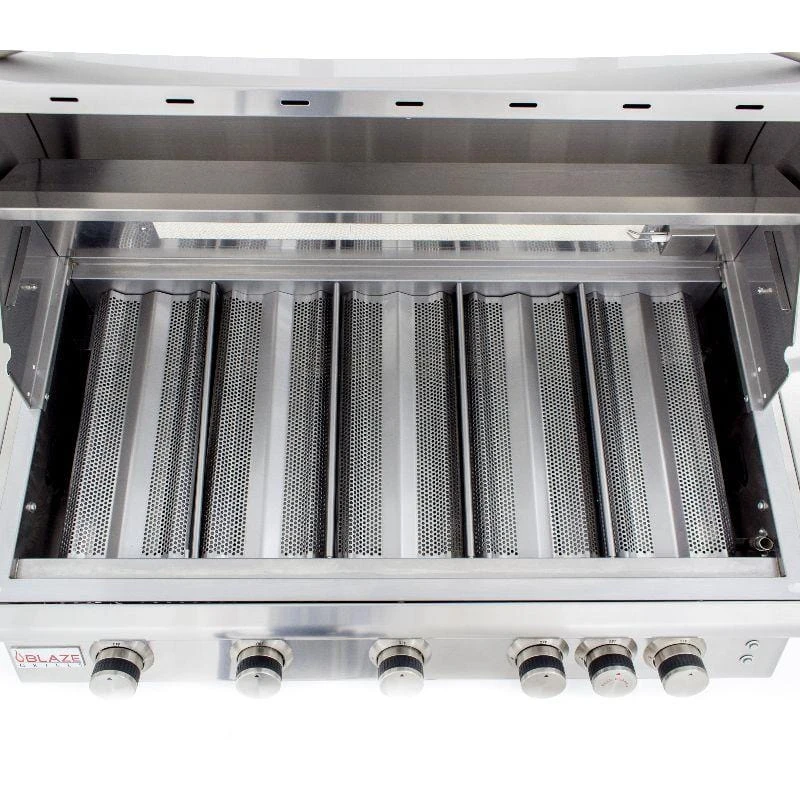

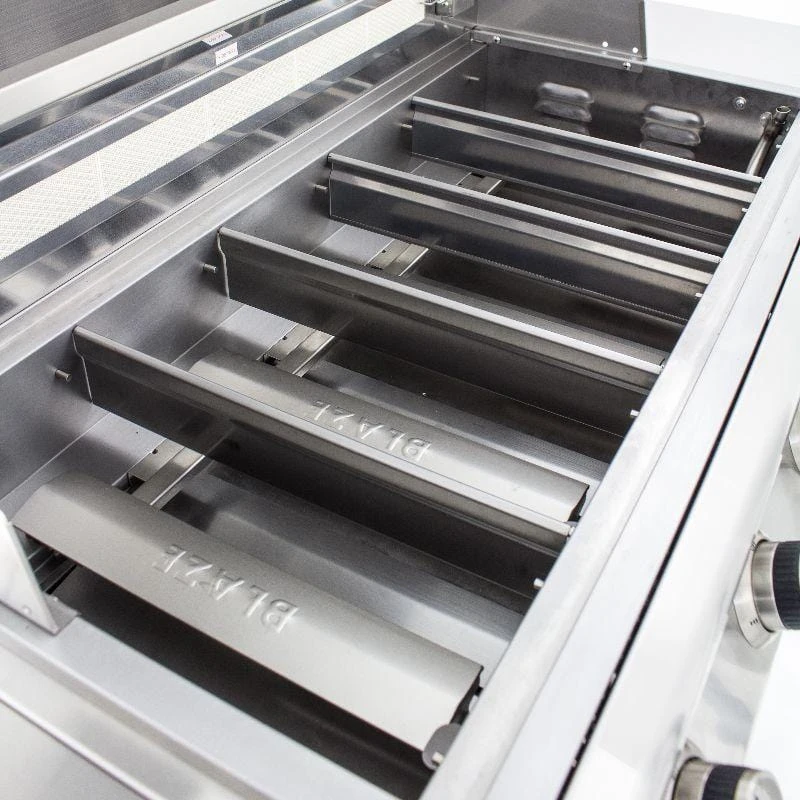

• Flame stabilizing grids minimize flare-ups while adding a grilled flavor

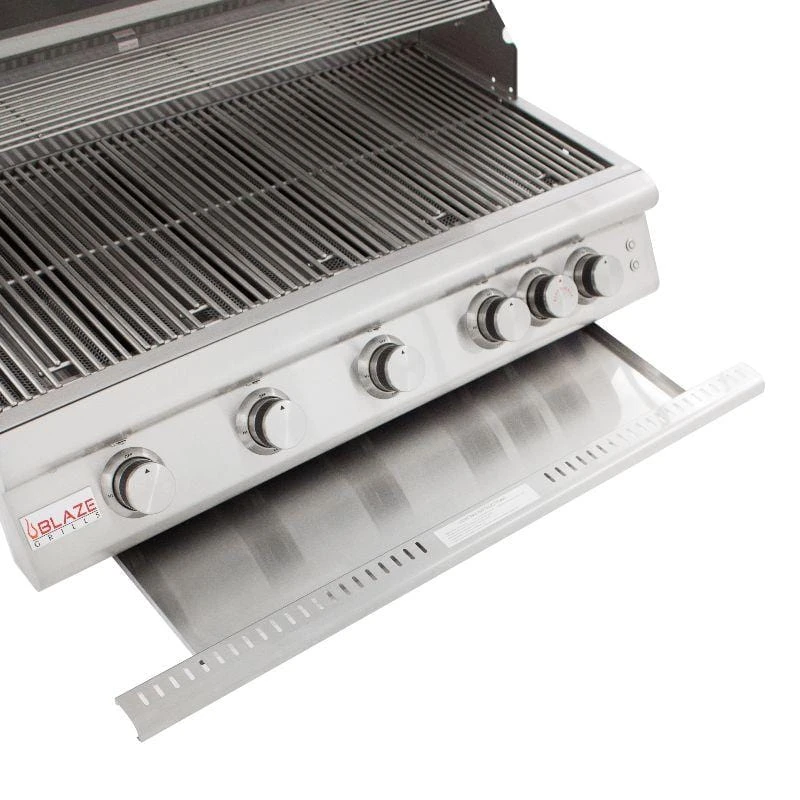

• Full-width drip tray for quick clean up

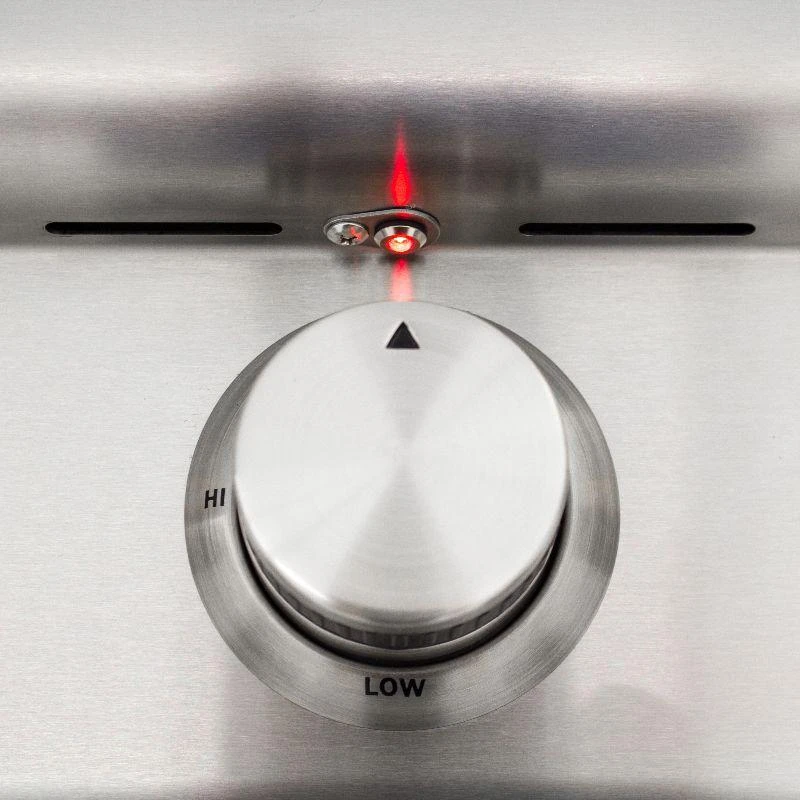

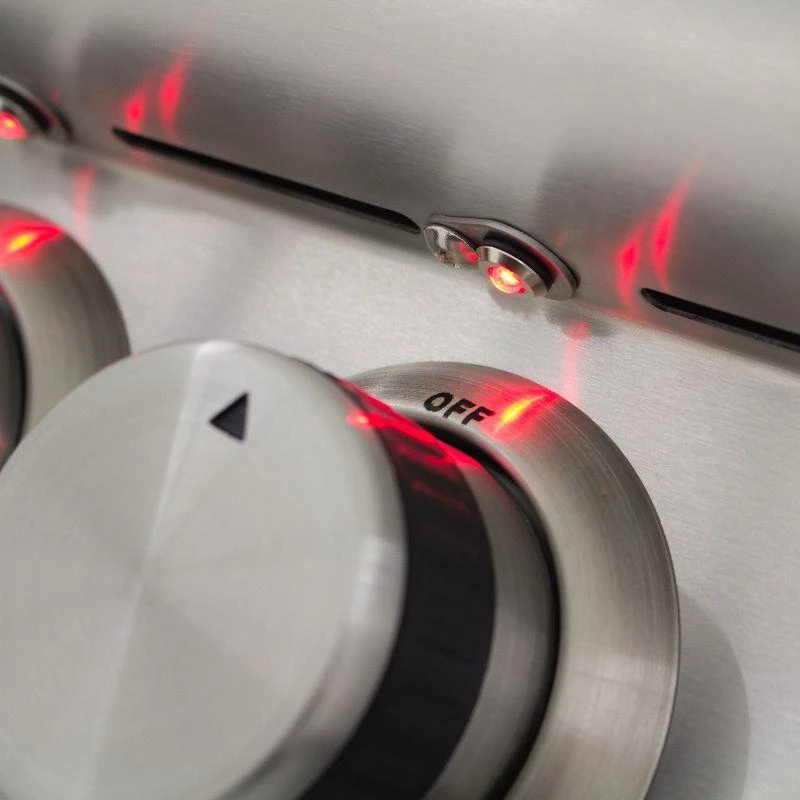

• Illuminated control knobs for evening gatherings creates a sophisticated appearance

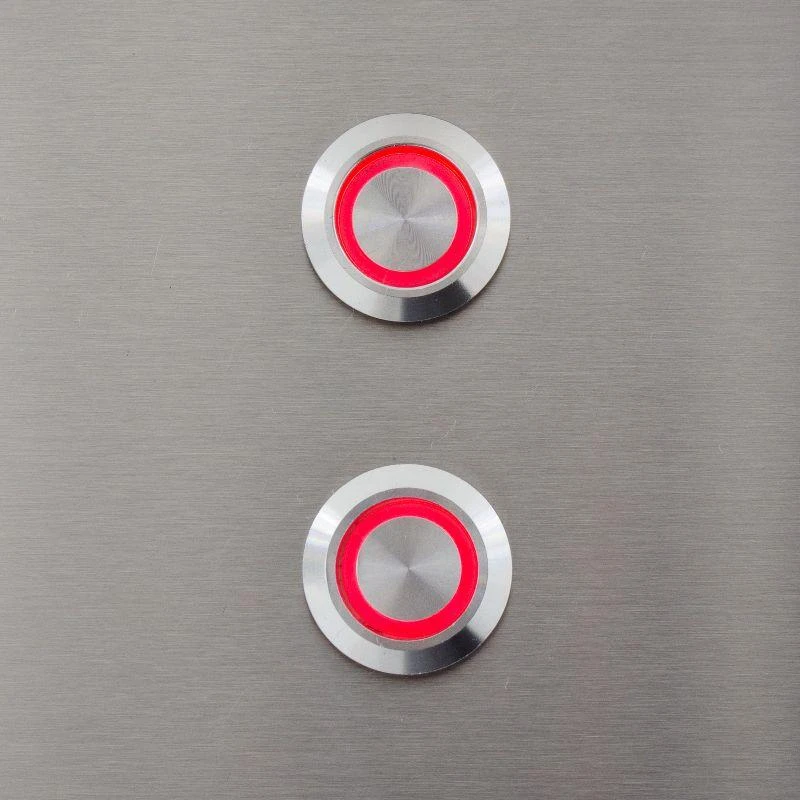

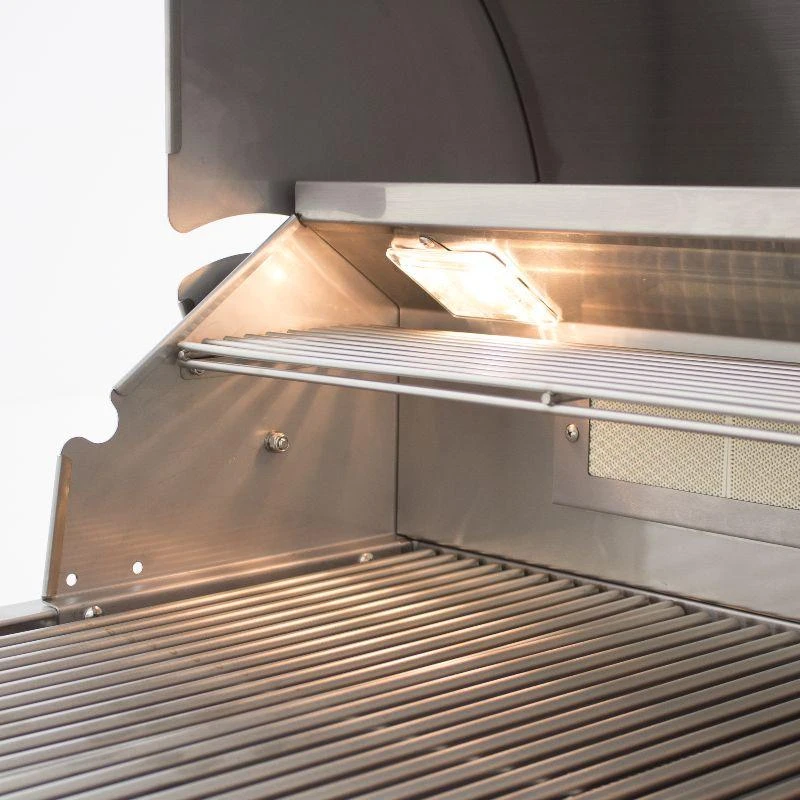

• Interior lights help navigate the grilling surface at night
• Double-lined grill hood protects outer layer from heat discoloration and maintains more heat
• Blaze Grills offers an impressive Lifetime Warranty

Standard LTE Features

Grill Specifications

BTU Output	14,000 BTU per Burner x5
Infrared Back Burner	10,000 BTU
Total BTU	80,000 BTU
Primary Ignition	Push N’ Turn Flame Thrower
Secondary Ignition	Flash Tube
Cooking Grid Dimensions	37″ x 18″
Total Cooking Area	915 sq. in. (includes warming rack)
Flame Tamer	Flame Stabilizer Grid
Zone Cooking	Removable Heat Zone Separators
Rotisserie Kit (Motor & Forks)	Optional
Burner	Commercial Quality Cast Stainless Steel
Gas Type	Each grill contains an NG/LP Orifice Kit

Optional Accessories

• Blaze LED Light Kit
  (SKU:BLZ-5LTELED-(AMBER/BLUE/WHITE))
  • Customize your Blaze Professional and LTE Products with new LED Light Colors Available in Blue, White, and Amber
  • These light kits can change the colors of existing lights on the LTE and Professional products only.



---



• Blaze Rotisserie Kit For 40 Inch 5-Burner Gas Grill
  (SKU:BLZ-40-ROTIS-SS)
  • Fits Blaze 5 burner grills
  • Includes motor, spit rod, 2 forks and counterbalance
  • Adds versatility to your outdoor cooking
  • Rotisserie kit allows you to roast whole chicken, pork loin, beef roasts and much more in the convenience of your BBQ grill
  • The 120V motor is enclosed in a stainless steel housing to withstand the outdoor elements.
  • Rotisserie Kit Assembly

---

• Blaze Insulated Jackets for Gas Grills
  (SKU: BLZ-5-IJ)
  • Blaze insulated jackets are essential when installing Blaze gas grills into a combustible enclosure such as an outdoor kitchen or BBQ island. This insulated jacket is constructed of stainless steel with a self-supporting ledge around the sides and back that adds one more layer of quality to your outdoor kitchen.
  • Overall Dimensions: 9 3/4″H x 42 3/8″W x 23″D
  • Cut Out Dimensions: 9 5/8″H x 40 3/4″W x 22 1/4″D
  • Insulated Jacket Installation

---

• Blaze Drip Tray Flame Guard
  (SKU: BLZ-5-DPFG)
  • The Blaze Drip Tray Flame Guard is the perfect upgrade to your Blaze Grill
  • This perforated piece sits inside the drip tray to help reduce the chance of a grease fire in the pan.
  • Extra safety feature
  • Helps to reduce the chance of grease fire in the drip tray



---

• Blaze Gas Grill Smoker Box
  • Made to last with 304 Stainless Steel construction
  • Adds outstanding smoky flavor to grilled foods, with no charcoal mess
  • Allows flavor-enhancing wood chips to smolder, not flame
  • Design allows you to easily add wood chips to your cook out
  • Welded seams allow the use of liquids for steaming
  • BLZ-SMBX / Normal Size: 17″ H × 4″ W x 1″ D
  • BLZ-XL-SMBX / Extra Large Size: 17.25″H x 7.5″W x 1″D

---

• Blaze Wind Guards
  (SKU: BLZ-WG-40)
  • This heavy duty 304 stainless steel wind guard easily integrates into outdoor areas by conveniently mounting into your existing cutout or insulated jacket.
  • Wind guards shield the grill from winds of up to 25 MPH, and are backed by a Lifetime warranty.
  • The Blaze wind guard is custom designed for high wind situations, such as coastal areas or balconies.
  • The Blaze Wind Guard allows you to cook on lower settings, keeps the burners lit, and prevents the fire from going out, even in strong winds.
  • Designed to mount within the existing grill cutout or inside the insulated jacket for easy installation.

Blaze 40-Inch 5 Burner LTE Gas Grill With Rear Burner
and Built-in Lighting System Installation Manual

WARRANTY: Blaze gas grills have a lifetime warranty that warrants against any defects in the manufacturing and workmanship of the main burners, cooking grids, body, flame tamers, heat zone separators, warming rack, and control valves. While ignition, electronic, and lighting systems are covered for one (1) year after the date of purchase.
