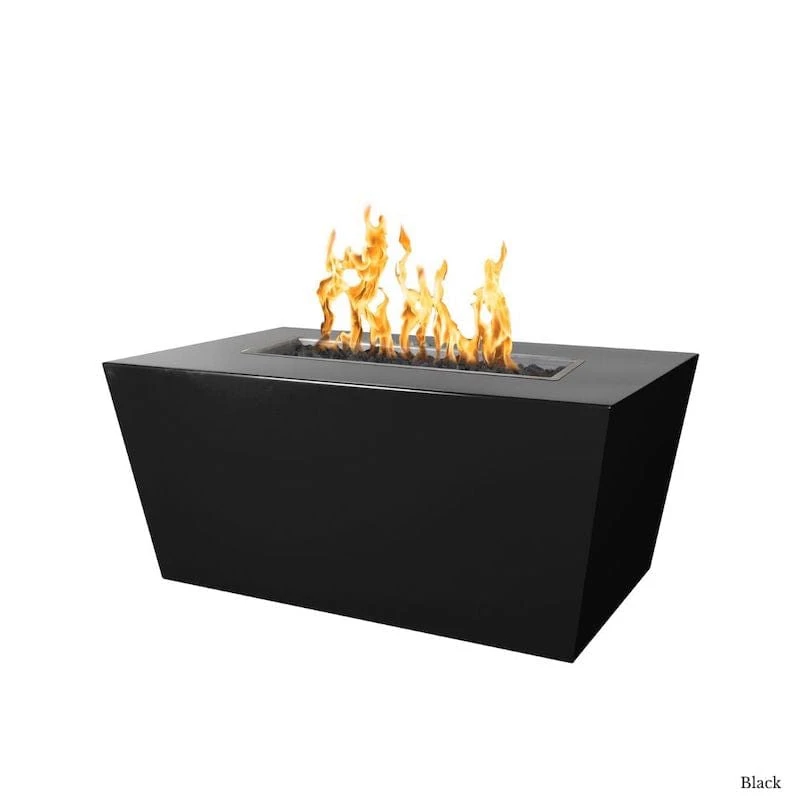

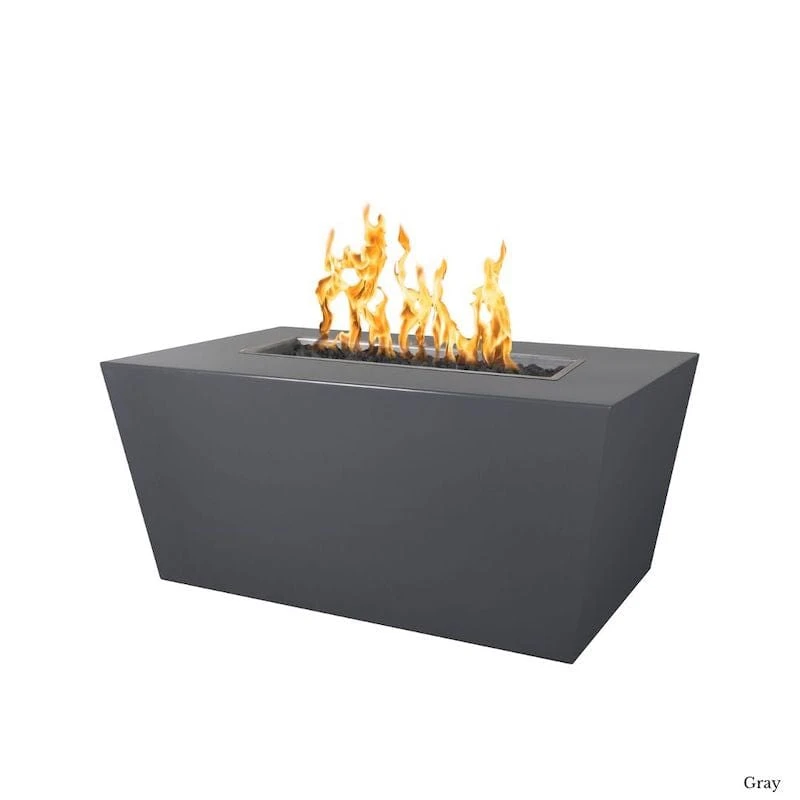

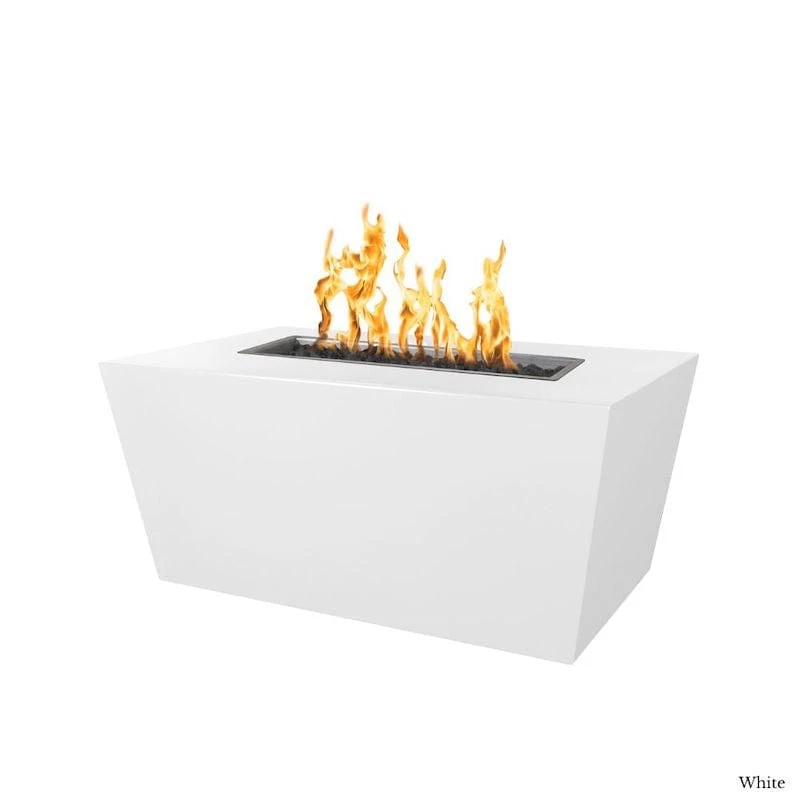

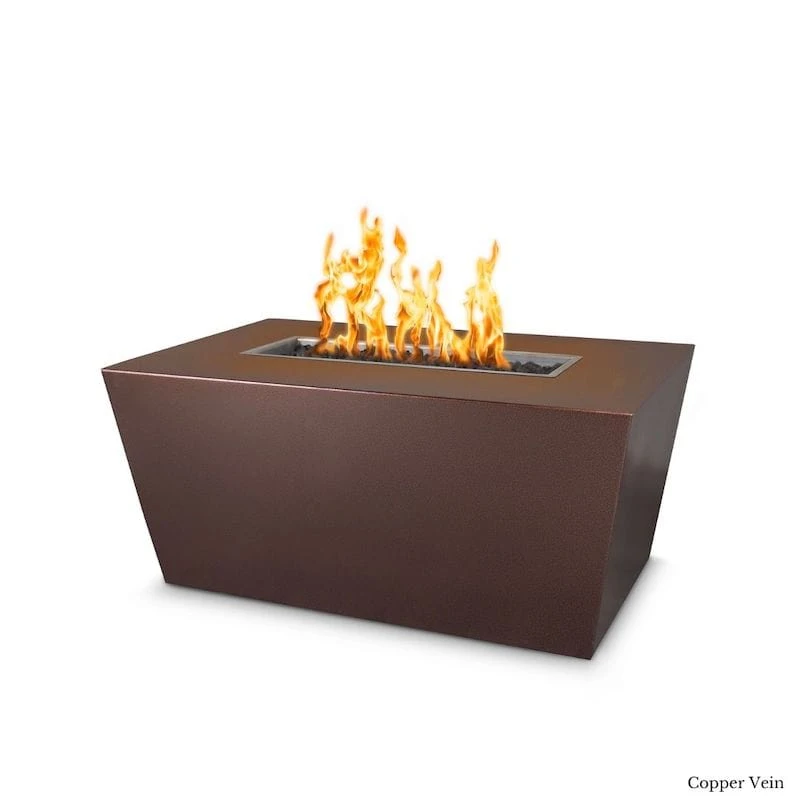

Mesa Powder Coated Fire Pits
The Mesa Fire Pit is derived from the Mesas in the Southwest, its native feeling is truly awe-inspiring and perfect for your outdoor space. The Mesa is a tapered rectangular fire pit available in a variety of beautiful options suited to your liking.
Our Fire Pits are individually handmade and proudly manufactured in the U.S.A. The fire pits we manufacture are durable and long-lasting in a variety of environments. Because of its handmade nature, slight variations in color and texture may occur.
Mesa Concrete Fire Pit | Specifications
48-inch
OPT-PCTT4824
Dimensions: 48” x 24”
Height: 24”
Base: 36” x 18”
Burning Area: 36” x 12” x 2”
Weight: 120 lbs.
BTU: 50,000
Sugg. Fire Glass: 50 lbs.
60-inch
OPT-PCTT6024
Dimensions: 60” x 24”
Height: 24”
Base: 48” x 18”
Burning Area: 48” x 12” x 2”
Weight: 180 lbs.
BTU: 70,000
Sugg. Fire Glass: 75 lbs.
72-inch
OPT-PCTT7224
Dimensions: 72” x 24”
Height: 24”
Base: 60” x 18”
Burning Area: 60” x 12” x 2”
Weight: 240 lbs.
BTU: 90,000
Sugg. Fire Glass: 75 lbs.
84-inch
OPT-PCTT8424
Dimensions: 84” x 24”
Height: 24”
Base: 72” x 18”
Burning Area: 72” x 12” x 2”
Weight: 315 lbs.
BTU: 110,000
Sugg. Fire Glass: 50 lbs.
Key Features:
- Fire Pit Material: Powder Coated
- Pan Material: 304 Stainless Steel
- Burner Material: 304 Stainless Steel
- Standard 1″ Flange on all pans
- Standard 2″ Depth on all pans
Items Included: Fire Table, Match Lit Kit or CSA Certified Electronic Ignition System; Fire Pan/Plate, Burner, Nipple & Lava Rock.
SPECS & USER MANUAL DOWNLOADS
48″
60″
72″
Ignition Type Option
 |  |  |  |  | |
| -FSML | -FSEN | -EKIT | -E12V | ||
| MODEL | Match-Lit | Match-Lit Flame Sense | Flame Sense Spark Ignition | Plug & Play | Low Voltage |
| IGNITION TYPE | Manual | Manual | Spark Ignition | Electronic | Electronic |
| GAS TYPE | LP or NG | LP or NG | LP or NG | LP or NG | LP or NG |
USAGE
| (R) | (P) / (RC) | (P) / (RC) | (RC) | (P) / (RC) |
| AUTOMATION | N/A | N/A | N/A | ✔ | ✔ |
| POWER SOURCE | Manual | Manual | AAA Battery | 110V | 12V |
| KEY VALVE | Manual Key Valve | Integrated Key Valve | Integrated Key Valve | Integrated Key Valve | Integrated Key Valve |
| Automatic Shut-Off | Manual Shut-Off | Manual Shut-Off | Manual Shut-Off | ✔ | ✔ |
| Additional Information | You will need a gas valve such as a chrome key valve to be installed to light the burner. To operate, turn the key to the ON position and ignite the gas with a match, taper, or lighter. The flame can be adjusted and turned off with the key valve. | This ignition type works like the standard Match Lit systems but includes technology that monitors the flame. The gas supply is automatically shut off if the flame goes out accidentally to prevent a dangerous gas build-up. | Spark Ignition systems use batteries to ignite the flame with a button on the fire pit’s control panel. They also feature Flame Sensing technology that automatically shuts off the gas supply if the flame goes out unexpectedly. | This Standard Voltage Electronic Ignition is suitable for fire pits in locations with power access, but not near water. These systems have Flame Sensing and will automatically relight if the flame goes out. | Low-voltage Electronic Ignition systems are recommended for installations near water features, fountains, and pools. This system includes Flame Sensing, which will automatically relight the flame if it gets blown out. |
| User Manual | | | | | |
| Size | 48-inch, 60-inch, 72-inch, 84-inch |
|---|---|
| Ignition | Match-Lit, March Lit with Flame Sense System, Flame Sense System with Push Button Spark Igniter, Low Voltage Electronic Ignition, Plug & Play Electronic Ignition |
